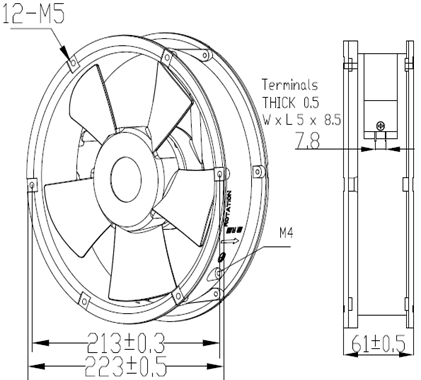

您的位置:首頁 >產品中心 > 交流風扇 > Φ220 x 60mm
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
22060B2HL |
Ball |
220-240 |
50 |
0.29 |
46 |
2350 |
390 |
11 |
24 |
61 |
|
22060B2HT |
Ball |
220-240 |
50 |
0.29 |
46 |
2350 |
390 |
11 |
24 |
61 |
|
22060B3HL |
Ball |
380 |
50 |
0.16 |
46 |
2350 |
390 |
11 |
24 |
61 |
|
22060B3HT |
Ball |
380 |
50 |
0.16 |
46 |
2350 |
390 |
11 |
24 |
61 |
All model could be customized. Please contact with YYC Sales. Safety: CE/CCC
Specifications are subject to change without notice.

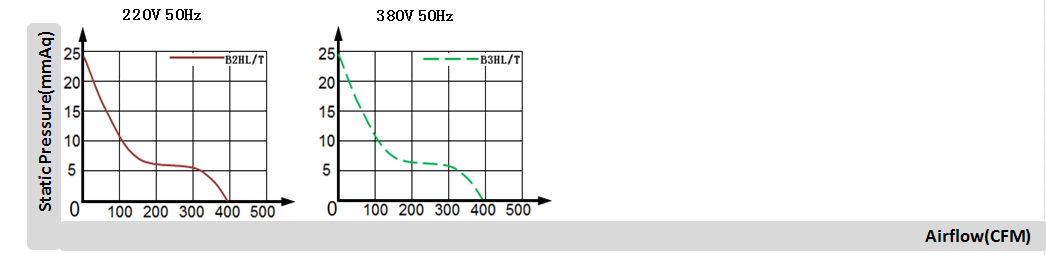

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:10PCS/CTN
