您的位置:首頁 >產品中心 > 新款風扇 > 92 X 92 X 25mm
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
9225B2HL |
Ball |
220-240 |
50/60 |
0.09/0.07 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
|
9225B2HT |
Ball |
220-240 |
50/60 |
0.09/0.07 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
|
9225B1HL |
Ball |
115 |
50/60 |
0.18/0.14 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
|
9225B1HT |
Ball |
115 |
50/60 |
0.18/0.14 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

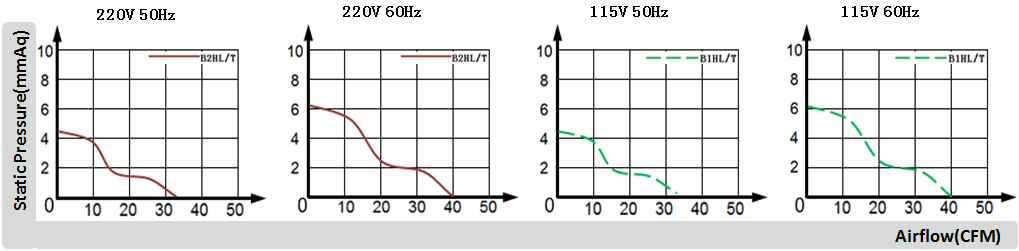

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:50PCS/CTN
