您的位置:首頁 >產品中心 > 交流風扇 > 80 x 80 x 38mm

8038 115V
16 ~ 25 CFM
Specification
Model
 Bearing
 Voltage
 Freq
 Current
 Power
 Speed
  Air Flow
Static
Pressure

Noise
VAC
 Hz
 A
 W
 RPM
  CFM
 m3/min
 mm H2O
 dB-A
8038B1HL
 Ball
 115
 50/60
 0.20/0.15
 14/9.8
 2350/2850
 20/25
 0.57/0.71
 3.0/4.6
 34/37
8038B1HT
 Ball
 115
 50/60
 0.20/0.15
 14/9.8
 2350/2850
 20/25
 0.57/0.71
 3.0/4.6
 34/37
8038B1ML
 Ball
 115
 50/60
 0.09/0.07
 6.1/4.8
 2300/2550
 19/22
 0.54/0.63
 2.8/3.7
 33/35
8038B1MT
 Ball
 115
 50/60
 0.09/0.07
 6.1/4.8
 2300/2550
 19/22
 0.54/0.63
 2.8/3.7
 33/35
8038B1LL
 Ball
 115
 50/60
 0.07/0.05
 5/4
 2250/2350
 18/19
 0.51/0.54
 2.6/3.0
 32/33
8038B1LT
 Ball
 115
 50/60
 0.07/0.05
 5/4
 2250/2350
 18/19
 0.51/0.54
 2.6/3.0
 32/33
8038S1HL
 Sleeve
 115
 50/60
 0.20/0.15
 14/9.8
 2300/2750
 19/24
 0.54/0.68
 2.7/4.1
 33/36
8038S1HT
 Sleeve
 115
 50/60
 0.20/0.15
 14/9.8
 2300/2750
 19/24
 0.54/0.68
 2.7/4.1
 33/36
8038S1ML
 Sleeve
 115
 50/60
 0.09/0.07
 6.4/5.2
 2150/2250
 17/18
 0.48/0.51
 2.5/3.2
 30/32
8038S1MT
 Sleeve
 115
 50/60
 0.09/0.07
 6.4/5.2
 2150/2250
 17/18
 0.48/0.51
 2.5/3.2
 30/32
8038S1LL
 Sleeve
 115
 50/60
 0.07/0.05
 4.8/4
 2150/2100
 17/16
 0.48/0.45
 2.3/2.7
 30/29
8038S1LT
 Sleeve
 115
 50/60
 0.07/0.05
 4.8/4
 2150/2100
 17/16
 0.48/0.45
 2.3/2.7
 30/29

All model could be customized. Please contact with YYC Sales.                                            Safety:UL/TUV/CE/CCC

Specifications are subject to change without notice.

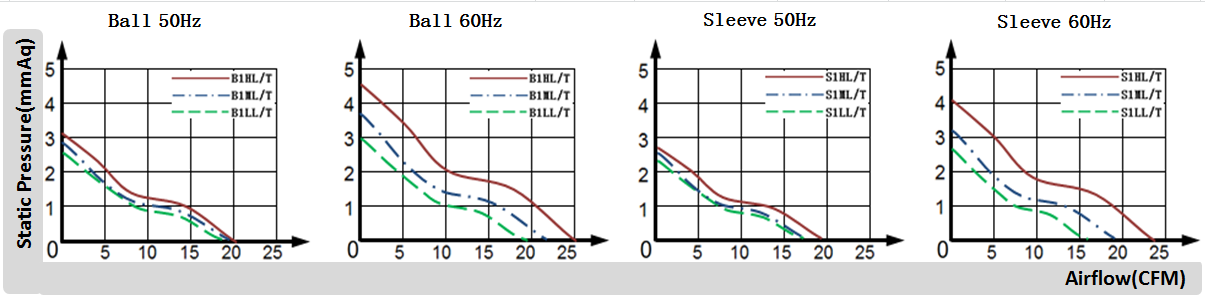

Air Flow-Static Pressure Characteristics


　　Frame: Aluminum alloy

　　Impeller: PBT Plastic

　　Protected: Impedance protected

　　Connection: Lead Wire or Terminals

　　Ball Bearing: -20°C to +70°C

　　Sleeve Bearing: -10°C to +70°C

　　Package: 50PCS/CTN
