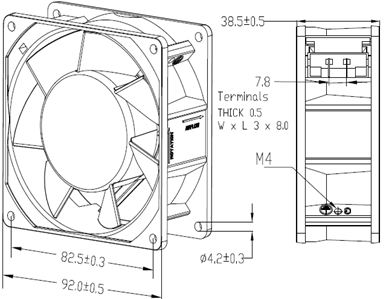

您的位置:首頁 >產品中心 > 交流風扇 > 92 x 92 x 38mm

9238 115V
30 ~ 46 CFM

Specification

Model
Bearing
Voltage
Freq
Current
Power
Speed
Air Flow

Static

Pressure

Noise

VAC
Hz
A
W
RPM
CFM
m³/min
mm H₂O
dB-A

9238B1HL
Ball
115
50/60
0.16/0.12
11/8
2350/2700
38/46
1.08/1.30
3.5/4.2
34/37

9238B1HT
Ball
115
50/60
0.16/0.12
11/8
2350/2700
38/46
1.08/1.30
3.5/4.2
34/37

9238B1ML
Ball
115
50/60
0.09/0.07
6.5/5.3
2200/2300
35/37
1.00/1.05
2.9/3.0
32/33

9238B1MT
Ball
115
50/60
0.09/0.07
6.5/5.3
2200/2300
35/37
1.00/1.05
2.9/3.0
32/33

9238B1LL
Ball
115
50/60
0.07/0.06
5.2/4.3
2100/2050
33/33
0.93/0.93
2.6/2.2
30/29

9238B1LT
Ball
115
50/60
0.07/0.06
5.2/4.3
2100/2050
33/33
0.93/0.93
2.6/2.2
30/29

9238S1HL
Sleeve
115
50/60
0.18/0.12
14/10
2200/2700
37/46
1.05/1.30
3.2/4.3
32/37

9238S1HT
Sleeve
115
50/60
0.18/0.12
14/10
2200/2700
37/46
1.05/1.30
3.2/4.3
32/37

9238S1ML
Sleeve
115
50/60
0.14/0.10
9/7
2050/2300
32/37
0.91/1.05
3.0/3.5
29/33

9238S1MT
Sleeve
115
50/60
0.14/0.10
9/7
2050/2300
32/37
0.91/1.05
3.0/3.5
29/33

9238S1LL
Sleeve
115
50/60
0.09/0.08
6.7/5.5
1950/1900
31/30
0.88/0.85
2.3/2.0
28/27

9238S1LT
Sleeve
115
50/60
0.09/0.08
6.7/5.5
1950/1900
31/30
0.88/0.85
2.3/2.0
28/27

All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC

Specifications are subject to change without notice.

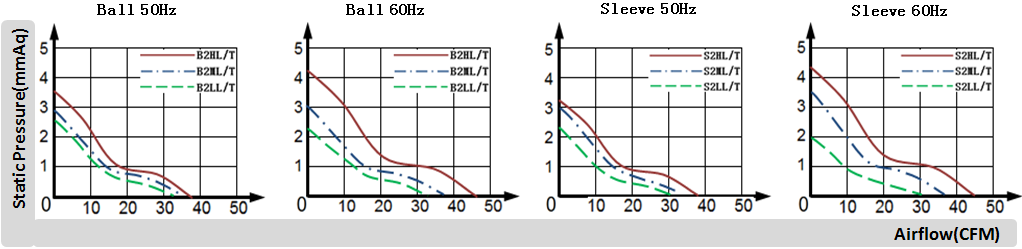

Air Flow-Static Pressure Characteristics

　　Frame: Aluminum alloy

　　Impeller: PBT Plastic

　　Protected: Impedance protected

　　Connection: Lead Wire or Terminals

　　Ball Bearing: -20°C to +70°C

　　Sleeve Bearing: -10°C to +70°C

　　Package: 50PCS/CTN

Model	Bearing	Voltage	Freq	Current	Power	Speed	Air Flow		Static Pressure	Noise
Model	Bearing	VAC	Hz	A	W	RPM	CFM	m³/min	mm H₂O	dB-A
9238B1HL	Ball	115	50/60	0.16/0.12	11/8	2350/2700	38/46	1.08/1.30	3.5/4.2	34/37
9238B1HT	Ball	115	50/60	0.16/0.12	11/8	2350/2700	38/46	1.08/1.30	3.5/4.2	34/37
9238B1ML	Ball	115	50/60	0.09/0.07	6.5/5.3	2200/2300	35/37	1.00/1.05	2.9/3.0	32/33
9238B1MT	Ball	115	50/60	0.09/0.07	6.5/5.3	2200/2300	35/37	1.00/1.05	2.9/3.0	32/33
9238B1LL	Ball	115	50/60	0.07/0.06	5.2/4.3	2100/2050	33/33	0.93/0.93	2.6/2.2	30/29
9238B1LT	Ball	115	50/60	0.07/0.06	5.2/4.3	2100/2050	33/33	0.93/0.93	2.6/2.2	30/29
9238S1HL	Sleeve	115	50/60	0.18/0.12	14/10	2200/2700	37/46	1.05/1.30	3.2/4.3	32/37
9238S1HT	Sleeve	115	50/60	0.18/0.12	14/10	2200/2700	37/46	1.05/1.30	3.2/4.3	32/37
9238S1ML	Sleeve	115	50/60	0.14/0.10	9/7	2050/2300	32/37	0.91/1.05	3.0/3.5	29/33
9238S1MT	Sleeve	115	50/60	0.14/0.10	9/7	2050/2300	32/37	0.91/1.05	3.0/3.5	29/33
9238S1LL	Sleeve	115	50/60	0.09/0.08	6.7/5.5	1950/1900	31/30	0.88/0.85	2.3/2.0	28/27
9238S1LT	Sleeve	115	50/60	0.09/0.08	6.7/5.5	1950/1900	31/30	0.88/0.85	2.3/2.0	28/27
