您的位置:首頁 >產品中心 > 交流風扇 > 120 x 120 x 25mm
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
12025B1HL |
Ball |
115 |
50/60 |
0.18/0.15 |
16/13 |
2250/2450 |
60/64 |
1.70/1.81 |
3.3/3.6 |
34/37 |
|
12025B1HT |
Ball |
115 |
50/60 |
0.18/0.15 |
16/13 |
2250/2450 |
60/64 |
1.70/1.81 |
3.3/3.6 |
34/37 |
|
12025B1ML |
Ball |
115 |
50/60 |
0.12/0.10 |
10.3/8.6 |
2050/2100 |
56/60 |
1.44/1.70 |
3.1/2.6 |
32/33 |
|
12025B1MT |
Ball |
115 |
50/60 |
0.12/0.10 |
10.3/8.6 |
2050/2100 |
56/60 |
1.44/1.70 |
3.1/2.6 |
32/33 |
|
12025B1LL |
Ball |
115 |
50/60 |
0.09/0.08 |
8.2/7 |
2000/1900 |
55/51 |
1.56/1.44 |
2.6/2.1 |
32/31 |
|
12025B1LT |
Ball |
115 |
50/60 |
0.09/0.08 |
8.2/7 |
2000/1900 |
55/51 |
1.56/1.44 |
2.6/2.1 |
32/31 |
|
12025S1HL |
Sleeve |
115 |
50/60 |
0.17/0.15 |
16/13.4 |
2000/2150 |
56/60 |
1.44/1.70 |
3.0/3.0 |
32/33 |
|
12025S1HT |
Sleeve |
115 |
50/60 |
0.17/0.15 |
16/13.4 |
2000/2150 |
56/60 |
1.44/1.70 |
3.0/3.0 |
32/33 |
|
12025S1ML |
Sleeve |
115 |
50/60 |
0.12/0.10 |
10.5/9 |
1850/1750 |
55/51 |
1.56/1.44 |
2.5/1.9 |
30/29 |
|
12025S1MT |
Sleeve |
115 |
50/60 |
0.12/0.10 |
10.5/9 |
1850/1750 |
55/51 |
1.56/1.44 |
2.5/1.9 |
30/29 |
|
12025S1LL |
Sleeve |
115 |
50/60 |
0.09/0.08 |
8.2/7.1 |
1700/1550 |
51/47 |
1.44/1.33 |
2.1/1.6 |
28/26 |
|
12025S1LT |
Sleeve |
115 |
50/60 |
0.09/0.08 |
8.2/7.1 |
1700/1550 |
51/47 |
1.44/1.33 |
2.1/1.6 |
28/26 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

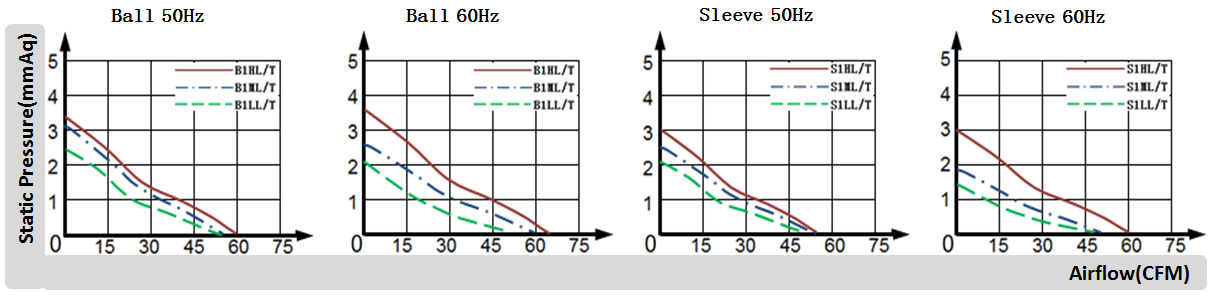

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
