您的位置:首頁 >產品中心 > 交流風扇 > Φ172 x 150 x 51mm

15050 5 impellers 220V
130 ~ 190 CFM

Specification

Model
Bearing
Voltage
Freq
Current
Power
Speed
Air Flow

Static

Pressure

Noise

VAC
Hz
A
W
RPM
CFM
m³/min
mm H₂O
dB-A

15050B2HL
Ball
220-240
50/60
0.31/0.26
42/37
2700/3000
178/190
5.04/5.38
13.3/12.1
56/60

15050B2HT
Ball
220-240
50/60
0.31/0.26
42/37
2700/3000
178/190
5.04/5.38
13.3/12.1
56/60

15050B2ML
Ball
220-240
50
0.15
22
2450
155
4.39
8.0
52

15050B2MT
Ball
220-240
50
0.15
22
2450
155
4.39
8.0 52

15050B2LL
Ball
220-240
50
0.14
20
2050
133
3.77
4.0
47

15050B2LT
Ball
220-240
50
0.14
20
2050
133
3.77
4.0 47

15050S2HL
Sleeve
220-240
50/60
0.31/0.27
42/39
2700/2900
175/186
4.96/5.27
13.0/11.0
56/59

15050S2HT
Sleeve
220-240
50/60
0.31/0.27
42/39
2700/2900
175/186
4.96/5.27
13.0/11.0
56/59

15050S2ML
Sleeve
220-240
50
0.17
25
2400
155
4.39
6.8
51

15050S2MT
Sleeve
220-240
50
0.17
25
2400
155
4.39
6.8
51

15050S2LL
Sleeve
220-240
50
0.13
20
1950
130
3.68
2.7
45

15050S2LT
Sleeve
220-240
50
0.13
20
1950
130
3.68
2.7
45

All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC

Specifications are subject to change without notice.

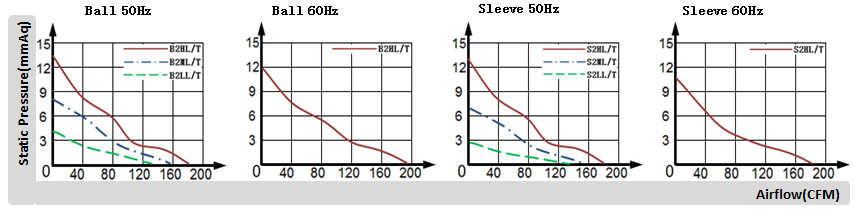

Air Flow-Static Pressure Characteristics

　　Frame: Aluminum alloy

　　Impeller: PBT Plastic

　　Protected: Impedance protected

　　Connection: Lead Wire or Terminals

　　Ball Bearing: -20°C to +70°C

　　Sleeve Bearing: -10°C to +70°C

　　Package: 20PCS/CTN

Model	Bearing	Voltage	Freq	Current	Power	Speed	Air Flow		Static Pressure	Noise
Model	Bearing	VAC	Hz	A	W	RPM	CFM	m³/min	mm H₂O	dB-A
15050B2HL	Ball	220-240	50/60	0.31/0.26	42/37	2700/3000	178/190	5.04/5.38	13.3/12.1	56/60
15050B2HT	Ball	220-240	50/60	0.31/0.26	42/37	2700/3000	178/190	5.04/5.38	13.3/12.1	56/60
15050B2ML	Ball	220-240	50	0.15	22	2450	155	4.39	8.0	52
15050B2MT	Ball	220-240	50	0.15	22	2450	155	4.39	8.0	52
15050B2LL	Ball	220-240	50	0.14	20	2050	133	3.77	4.0	47
15050B2LT	Ball	220-240	50	0.14	20	2050	133	3.77	4.0	47
15050S2HL	Sleeve	220-240	50/60	0.31/0.27	42/39	2700/2900	175/186	4.96/5.27	13.0/11.0	56/59
15050S2HT	Sleeve	220-240	50/60	0.31/0.27	42/39	2700/2900	175/186	4.96/5.27	13.0/11.0	56/59
15050S2ML	Sleeve	220-240	50	0.17	25	2400	155	4.39	6.8	51
15050S2MT	Sleeve	220-240	50	0.17	25	2400	155	4.39	6.8	51
15050S2LL	Sleeve	220-240	50	0.13	20	1950	130	3.68	2.7	45
15050S2LT	Sleeve	220-240	50	0.13	20	1950	130	3.68	2.7	45
