12025 115/220V Ya-cool
61 ~ 70 CFM
產品中心 Product center
聯系我們 Contact Us
中國銷售部
銷售專線：86-13682689090
86-755 27656335 27656878
傳 真： 86-755 27648519
郵 箱：info@szbestfan.com
地 址：深圳市寶安區石巖鎮洲石路萬大工業區D棟1.3.4樓
銷售專線：86-13682689090
86-755 27656335 27656878
傳 真： 86-755 27648519
郵 箱：info@szbestfan.com
地 址：深圳市寶安區石巖鎮洲石路萬大工業區D棟1.3.4樓
您的位置:首頁 >產品中心 > 新款風扇 > 120 x 120 x 25mm
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
12025B2HL |
Ball |
220-240 |
50/60 |
0.09/0.07 |
14.5/11 |
2450/2800 |
62/70 |
1.76/1.98 |
4.7/4.7 |
38/42 |
|
12025B2HT |
Ball |
220-240 |
50/60 |
0.09/0.07 |
14.5/11 |
2450/2800 |
62/70 |
1.76/1.98 |
4.7/4.7 |
38/42 |
|
12025B1HL |
Ball |
115 |
50/60 |
0.18/0.14 |
14/11 |
2400/2800 |
61/70 |
1.73/1.98 |
4.7/4.7 |
38/42 |
|
12025B1HT |
Ball |
115 |
50/60 |
0.18/0.14 |
14/11 |
2400/2800 |
61/70 |
1.73/1.98 |
4.7/4.7 |
38/42 |
All model could be customized. Please contact with YYC Sales. Safety:UL/TUV/CE/CCC
Specifications are subject to change without notice.

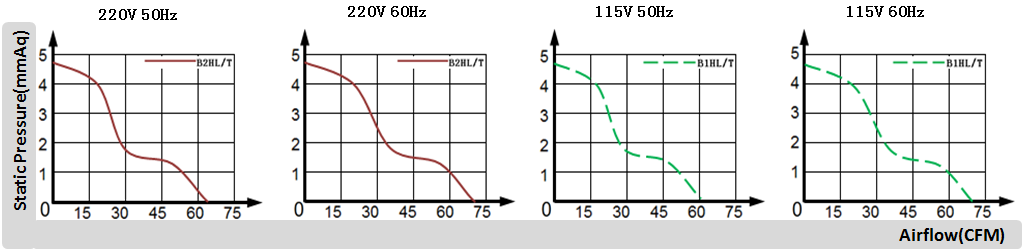

Air Flow-Static Pressure Characteristics

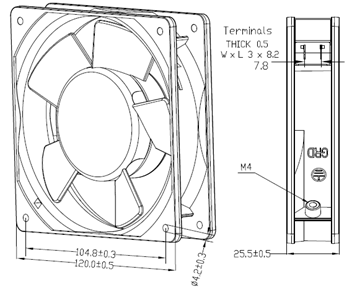

Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package: 40PCS/CTN
