您的位置:首頁 >產品中心 > 交流風扇 > 120 x 120 x 25mm
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
| VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O
|
dB-A |
||
|
12025B2HL |
Ball |
220-240 |
50/60 |
0.10/0.09 |
18/14 |
2250/2500 |
60/64 |
1.70/1.81 |
3.8/4.1 |
34/37 |
|
12025B2HT |
Ball |
220-240 |
50/60 |
0.10/0.09 |
18/14 |
2250/2500 |
60/64 |
1.70/1.81 |
3.8/4.1 |
34/37 |
|
12025B2ML |
Ball |
220-240 |
50/60 |
0.06/0.05 |
9.8/8.2 |
2050/2000 |
53/52 |
1.50/1.47 |
2.6/2.0 |
32/32 |
|
12025B2MT |
Ball |
220-240 |
50/60 |
0.06/0.05 |
9.8/8.2 |
2050/2000 |
53/52 |
1.50/1.47 |
2.6/2.0 |
32/32 |
|
12025B2LL |
Ball |
220-240 |
50/60 |
0.04/0.04 |
7.8/6.8 |
1850/1700 |
50/47 |
1.42/1.33 |
2.0/1.5 |
30/28 |
|
12025B2LT |
Ball |
220-240 |
50/60 |
0.04/0.04 |
7.8/6.8 |
1850/1700 |
50/47 |
1.42/1.33 |
2.0/1.5 |
30/28 |
|
12025S2HL |
Sleeve |
220-240 |
50/60 |
0.10/0.08 |
18/14 |
2250/2100 |
56/60 |
1.60/1.70 |
3.3/3.0 |
34/33 |
|
12025S2HT |
Sleeve |
220-240 |
50/60 |
0.10/0.08 |
18/14 |
2250/2100 |
56/60 |
1.60/1.70 |
3.3/3.0 |
34/33 |
|
12025S2ML |
Sleeve |
220-240 |
50/60 |
0.06/0.05 |
10/8.3 |
1800/1700 |
51/47 |
1.44/1.33 |
2.0/1.7 |
29/28 |
|
12025S2MT |
Sleeve |
220-240 |
50/60 |
0.06/0.05 |
10/8.3 |
1800/1700 |
51/47 |
1.44/1.33 |
2.0/1.7 |
29/28 |
|
12025S2LL |
Sleeve |
220-240 |
50/60 |
0.05/0.04 |
8.1/6.9 |
1600/1350 |
43/38 |
1.21/1.08 |
1.6/1.3 |
26/22 |
|
12025S2LT |
Sleeve |
220-240 |
50/60 |
0.05/0.04 |
8.1/6.9 |
1600/1350 |
43/38 |
1.21/1.08 |
1.6/1.3 |
26/22 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

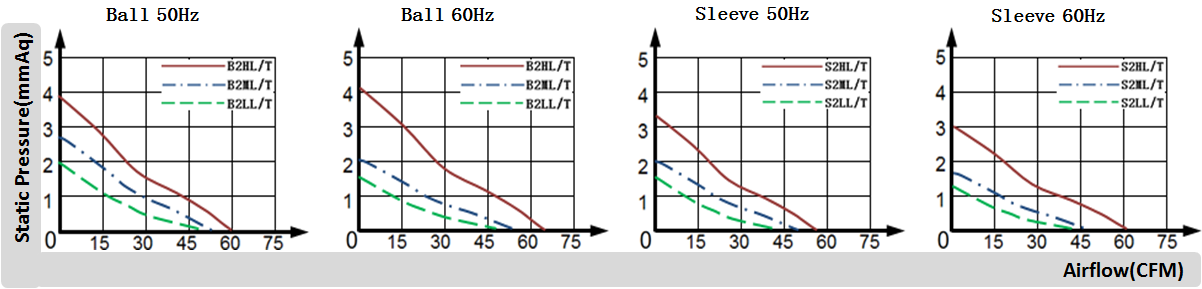

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
